80mm - 90mm Normal Lens - Infinity Test

All images were shot with the camera set to Aperture Priority mode. The DCR (raw) files were converted to 8-bit TIFF files, then cropped in Photoshop before being saved as JPEGs for web viewing. Except for re-sizing the color balance examples, absolutely no sharpening, color, or levels adjustments were performed.

See notes on the limitations of this test at the bottom of this page.

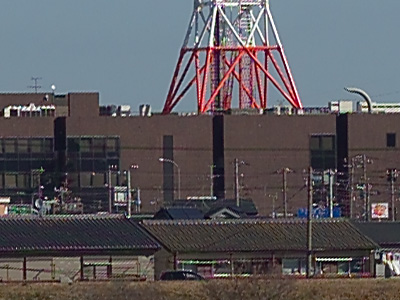

Center of the frame

Wide Open
Arsenal 80mm F2.8 Volna at F2.8
Arsenal 80mm F2.8 Arsat at F2.8
Carl Zeiss Jena 80mm F2.8 Biometar at F2.8
80mm F2.8 Exakta (Biometar) at F2.8
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F2.8
Bronica 80mm F2.8 Zenzanon-S at F2.8 *5
Carl Zeiss 80mm F2.0 Planar (Contax) at F2.0 *6

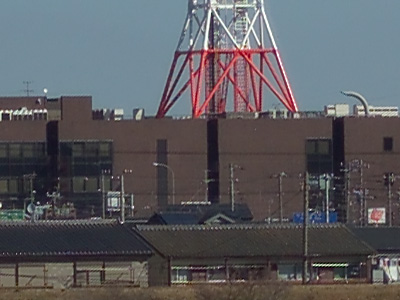

Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F2.8
Arsenal 90mm F2.8 Vega at F2.8
Kilfitt 90mm F2.8 Makro-Kilar at F2.8

F5.6
Arsenal 80mm F2.8 Volna at F5.6
Arsenal 80mm F2.8 Arsat at F5.6
Carl Zeiss Jena 80mm F2.8 Biometar at F5.6
80mm F2.8 Exakta (Biometar) at F5.6
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F5.6
Bronica 80mm F2.8 Zenzanon-S at F5.6 *5
Carl Zeiss 80mm F2.0 Planar (Contax) at F5.6
Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F5.6

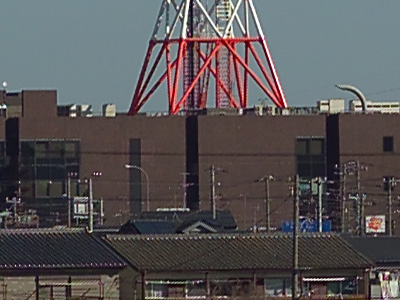

Arsenal 90mm F2.8 Vega at F5.6
Kilfitt 90mm F2.8 Makro-Kilar at F5.6

F11
Arsenal 80mm F2.8 Volna at F11
Arsenal 80mm F2.8 Arsat at F11
Carl Zeiss Jena 80mm F2.8 Biometar at F11
80mm F2.8 Exakta (Biometar) at F11
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F11
Bronica 80mm F2.8 Zenzanon-S at F11 *5
Carl Zeiss 80mm F2.0 Planar (Contax) at F11
Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F11

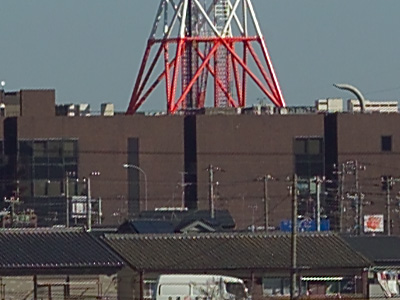

Arsenal 90mm F2.8 Vega at F11
Kilfitt 90mm F2.8 Makro-Kilar at F11



Edge of the frame

Wide Open
Arsenal 80mm F2.8 Volna at F2.8
Arsenal 80mm F2.8 Arsat at F2.8
Carl Zeiss Jena 80mm F2.8 Biometar at F2.8

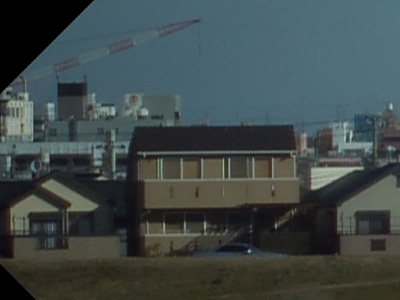

80mm F2.8 Exakta (Biometar) at F2.8
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F2.8
Bronica 80mm F2.8 Zenzanon-S at F2.8 *5

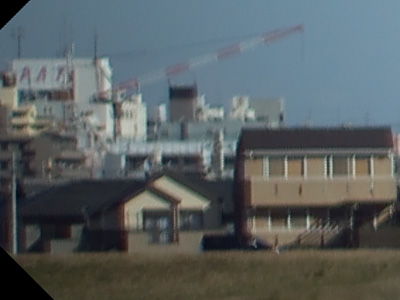

Carl Zeiss 80mm F2.0 Planar (Contax) at F2.0 *6
Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F2.8
Arsenal 90mm F2.8 Vega at F2.8
Kilfitt 90mm F2.8 Makro-Kilar at F2.8

F5.6
Arsenal 80mm F2.8 Volna at F5.6
Arsenal 80mm F2.8 Arsat at F5.6
Carl Zeiss Jena 80mm F2.8 Biometar at F5.6
80mm F2.8 Exakta (Biometar) at F5.6
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F5.6
Bronica 80mm F2.8 Zenzanon-S at F5.6 *5
Carl Zeiss 80mm F2.0 Planar (Contax) at F5.6
Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F5.6
Arsenal 90mm F2.8 Vega at F5.6
Kilfitt 90mm F2.8 Makro-Kilar at F5.6

F11
Arsenal 80mm F2.8 Volna at F11
Arsenal 80mm F2.8 Arsat at F11
Carl Zeiss Jena 80mm F2.8 Biometar at F11
80mm F2.8 Exakta (Biometar) at F11
Schneider-Kreuznach 80mm F2.8 Xenotar MF at F11
Bronica 80mm F2.8 Zenzanon-S at F11 *5
Carl Zeiss 80mm F2.0 Planar (Contax) at F11
Carl Zeiss 80mm F2.8 Planar (Hasselblad) at F11
Arsenal 90mm F2.8 Vega at F11
Kilfitt 90mm F2.8 Makro-Kilar at F11

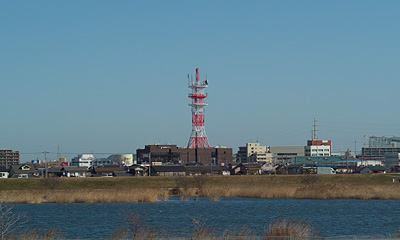

Color Balance

Arsenal 80mm F2.8 Volna
Arsenal 80mm F2.8 Arsat
Carl Zeiss Jena 80mm F2.8 Biometar

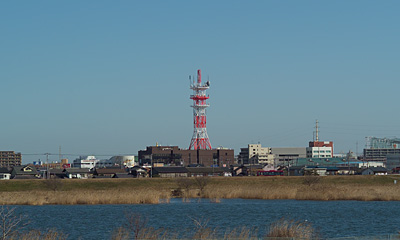

80mm F2.8 Exakta (Biometar)
Schneider-Kreuznach 80mm F2.8 Xenotar MF

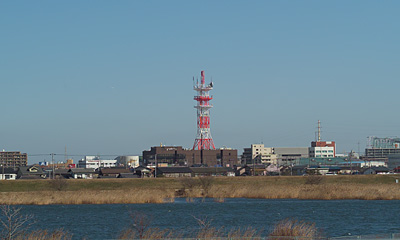

Bronica 80mm F2.8 Zenzanon-S *5
Carl Zeiss 80mm F2.0 Planar (Contax)
Carl Zeiss 80mm F2.8 Planar (Hasselblad)
Arsenal 90mm F2.8 Vega
Kilfitt 90mm F2.8 Makro-Kilar




Some limitations of these tests:

1) Point of focus. The point of focus was the radio tower in the center of the frame, which was as good a focusing target as I could find, but the exact point of focus may vary slightly between lenses.

2) Representative sample. I am using my own lenses for these tests, the 80mm F2.8 Arsat was purchased new, but all other pieces were purchased used. I do not know the history of the used lenses, and so some of them may have been disassembled or serviced prior to their coming into my possession. At any rate, the lenses tested here are assumed to be a "representative sample" of what is commonly available. Variations in manufacture among other things may skew the results, and so these test images may or may not accurately reflect what you can expect from a different lens specimen.

3) "Non-Digital lenses." There is an ongoing debate about the performance capabilities of older lenses on digital sensors. While none of the lenses tested were developed specifically for digital sensors, the Kodak ProBack 645 mounted on the Contax 645 was developed specifically for medium format digital photography and performs superbly even with existing non-digital-specific lenses. While I cannot answer the above-mentioned question with any authority, these tests were conducted with as even a playing field as is currently possible. Most of the results are outstanding and should reflect what is possible when shooting on film as well.

4) Resolving limits of the digital sensor. The CCD sensor in the Kodak ProBack 645 measures 36.72mm x 36.72mm and delivers a 4072 x 4072 pixel image as a 20MB raw and/or 50MB TIFF file. Each pixel measures just 0.009mm on the CCD. The cropped areas above measure 400 x 300 pixels, meaning that it represents a 3.6mm x 2.7mm area on the sensor. If you view these images on a common .26mm dot pitch monitor, it is the equivalent of examining a 5.3 x 5.3 foot print (1.6 x 1.6 meters) from a 6x6 piece of film up close. This is extreme magnification. To put this into perspective, take a few steps back from your monitor and then look at the images again... this would be a little more appropriate for a print viewing distance.

5) No Bronica SQ lens adapter. I don't think a Bronica SQ to Contax 645 adapter was ever manufactured. But placing the back of the Bronica lenses directly against the front of the Pentacon 6 to Contax 645 adapter happens to give good infinity focus. But since there was no way to secure the lens to the adapter, I had to hand hold the lens in place and as a result: the exact placement of the lens between shots varies slightly, the potential of these lenses as far as color and contrast is probably reduced because stray light was able to enter the small gaps between the lens and the adapter, and their overall sharpness could be lowered because I was hand holding them in place. Please take the Bronica lens results with a big grain of salt and consider their inclusion as being just "for fun".

Also, I think in the F2.8 and F5.6 shots from the Bronica lens, the shade's mask was getting into the frame because of the way I was holding it, and so the corners are a bit darkened. Please do not take this as a characteristic light fall off of this lens.

6) Maximum aperture. The maximum aperture of the 80mm Planar for Contax 645 is F2.0, which is a full stop faster than that of all the other lenses. Using the Sunny 16 rule means that with the digital back set to 100iso sensitivity, the shutter speed would be 1/6400 of a second. Japan in the winter doesn't get quite enough sunshine for Sunny 16 to work, but the camera was waffling between its maximum of 1/4000 and indicating over-exposure. The resulting image is indeed slightly over exposed, so color and contrast will be somewhat affected for the F2.0 samples.
