150mm - 180mm Mid-Telephoto Lens - 30-Meter Test

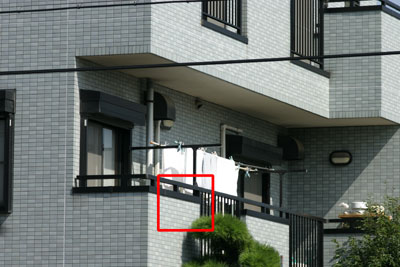

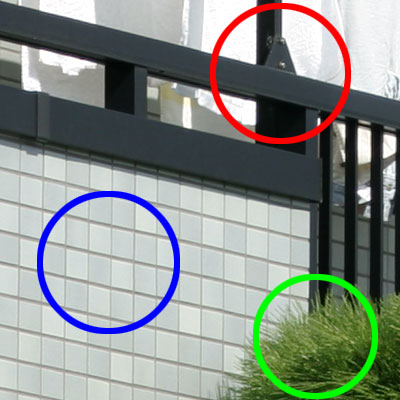

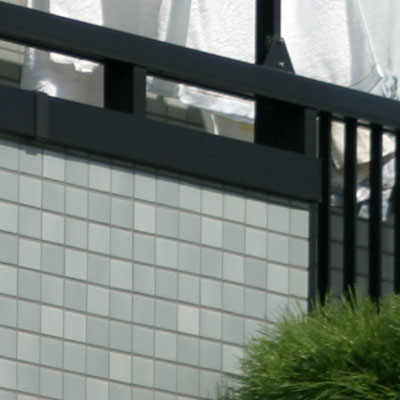

The area enclosed by the red box is represented below at 100% magnification. No sharpening, color, or contrast adjustments were made.


Red circle: I looked at this area to see if there was any flare or "bleed" from the white towel into the dark railing.
Blue circle: The area I focused on.
Green circle: Another area to look at for sharpness.


See notes on the limitations of this test at the bottom of this page.


Wide open

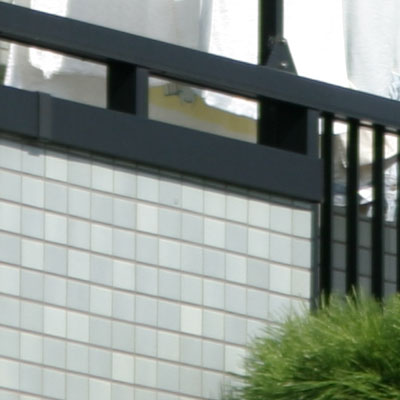

Canon lens at F5

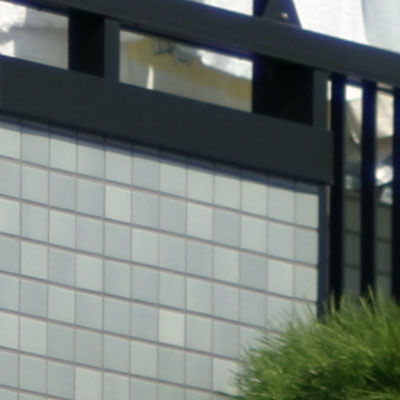

180mm Sonnar at F2.8

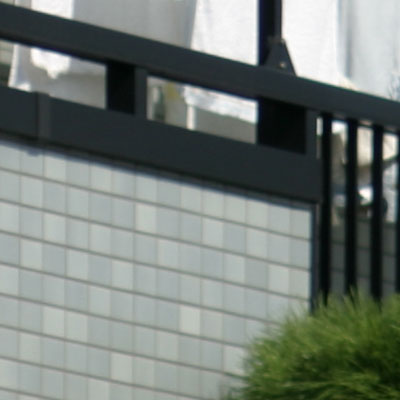

150mm Hartblei at F2.8

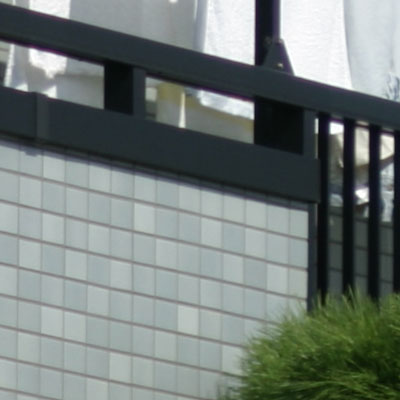

150mm Kaleinar at F2.8
150mm Tele-Xenar #1 at F4

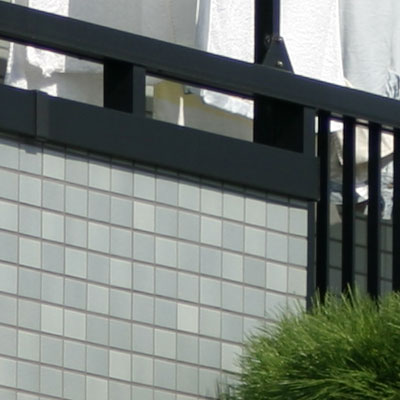

150mm Tele-Xenar #2 at F4



F8

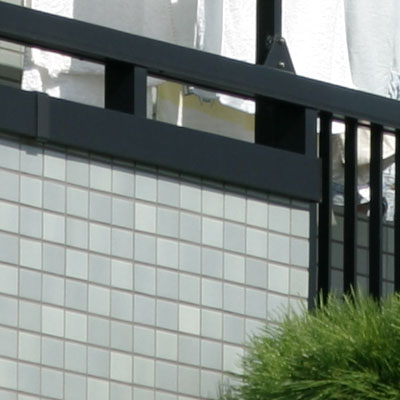

Canon lens

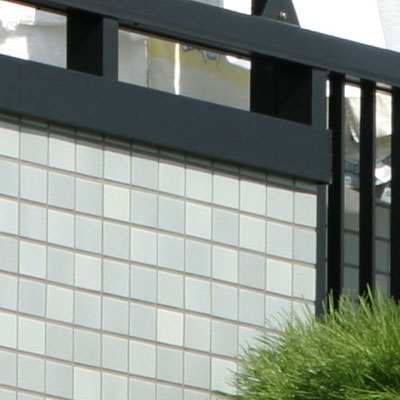

180mm Sonnar
150mm Hartblei

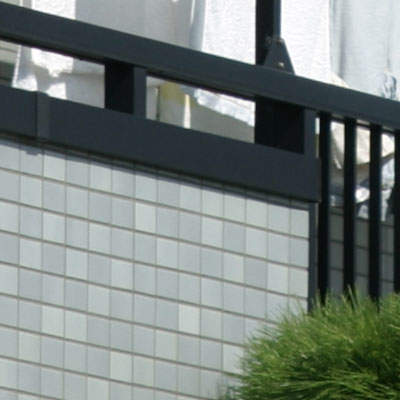

150mm Kaleinar

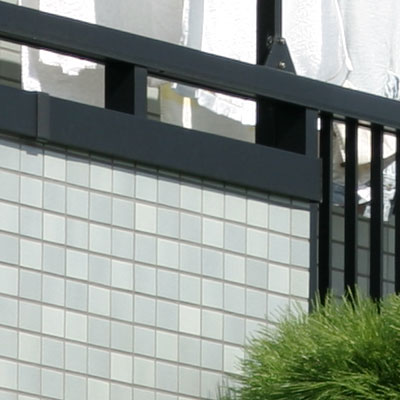

150mm Tele-Xenar #1

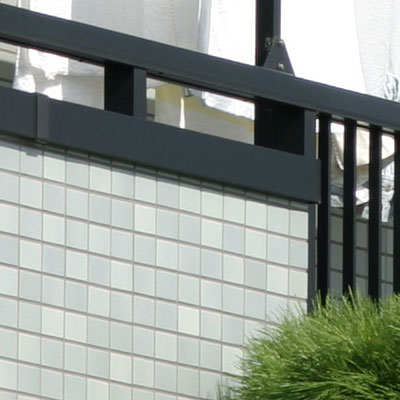

150mm Tele-Xenar #2



F16

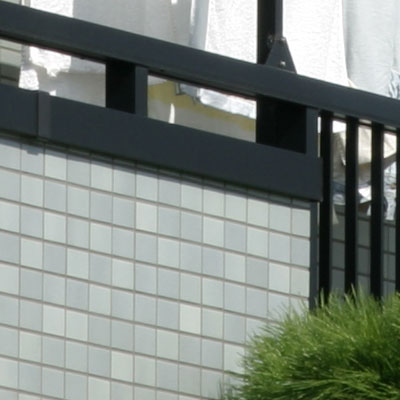

Canon lens

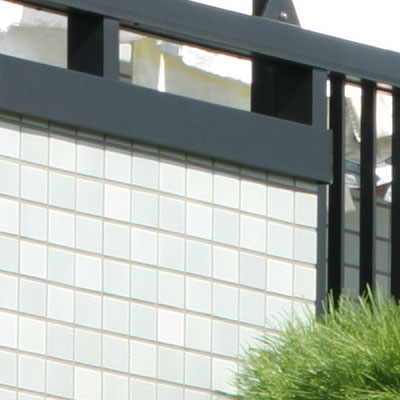

180mm Sonnar

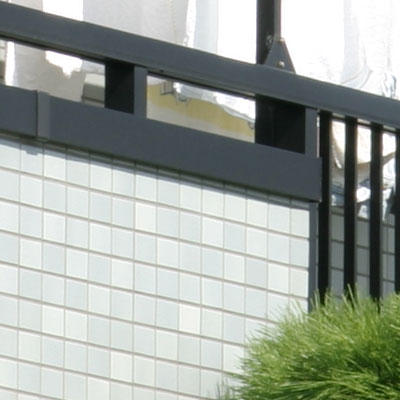

150mm Hartblei
150mm Kaleinar
150mm Tele-Xenar #1

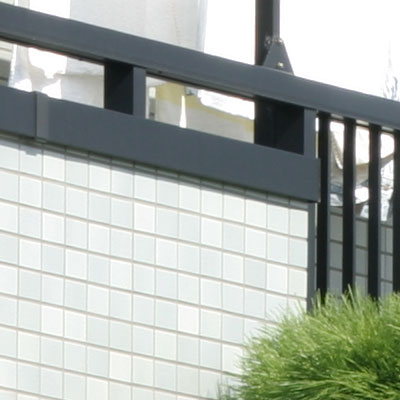

150mm Tele-Xenar #2




Some limitations of these tests:

1) Point of focus. I tried to focus each lens to get the brick area indicated by the blue circle (image at the top of this page) as sharp as possible, but there may still be variations in the actual point of focus.

2) Representative sample. I am using my own equipment for these tests, some purchased new but other pieces purchased used. I do not know the history of the lenses I purchased used, and so some of them may have been disassembled or serviced prior to their coming into my possession. At any rate, the lenses tested here are assumed to be a "representative sample" of what is commonly available. Variations in manufacture among other things may skew the results, and so these test images may or may not accurately reflect what you can expect from a different lens specimen.
